Description

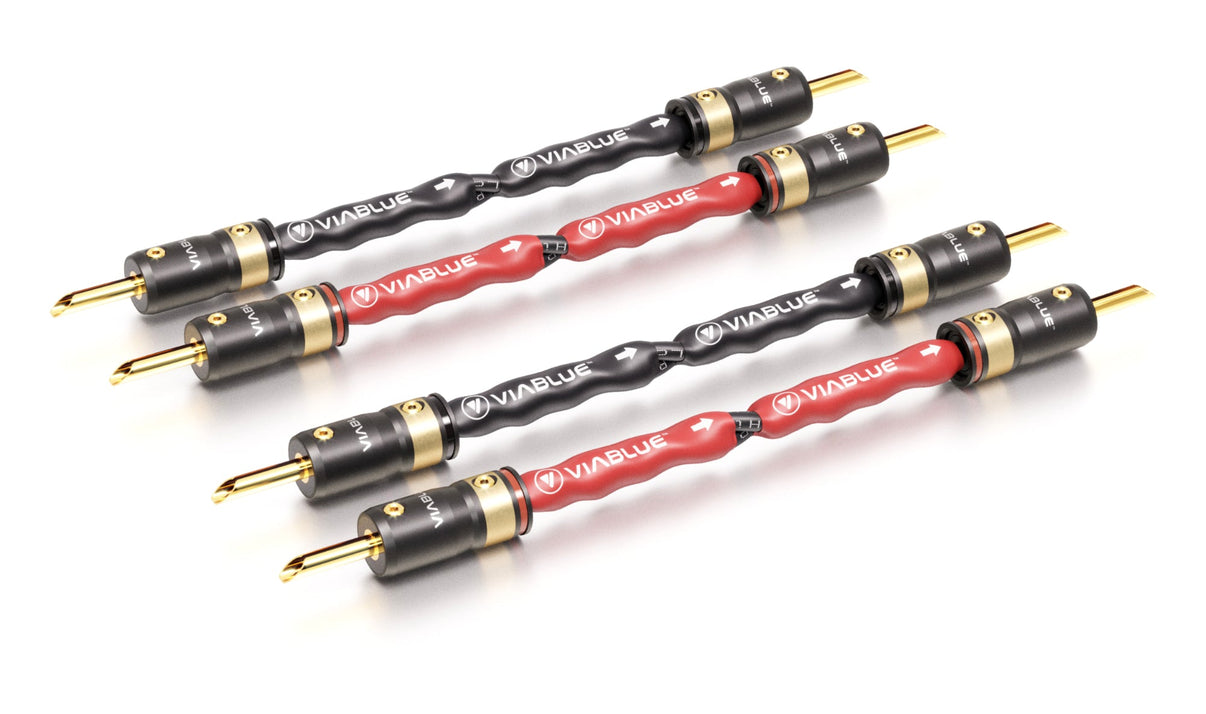

SC-4 Jumpers 6 inch - 2 pairs
VIABLUE™ SC-4 Silver-Series jumper bridges consist of 2x 4mm² conductors. One conductor includes silvered OFC copper strands, which provide a brilliant and precise high frequency rendition, as well as 3D acoustics. The second conductor is comprised of tinned OFC copper strands to guarantee powerful and vibrant basses. All frequencies are represented and reproduced in a linear fashion true to the original.
Connection between high-pass and low-pass
The SC-4 cable bridges replace existing sheet metal bridges on bi-wire loudspeaker terminals. This offers a precise high frequency rendition and vibrant basses due to a loss-free connection. Stated lengths are measured between the connectors at the visible cable.
VIABLUE™ SC-4 Silver-Series: dynamic and powerful sound
- 2 single conductors each: 1 high pass and 1 low pass combined
- 448 single strands assembled to 2x 7 wrapped bundles combined to 2 single conductors
- Silvered high frequency conductors, tinned low frequency conductors
During production, the outer shell of a SC-4 Silver speaker cable is removed. The 4 conductors of the cable are then assembled to 2 jumper bridges. Once finished, each cable bridge contains 2 strands.
Customized with VIABLUE™ T8 Banana Plugs and T8 Spades
- Full metal housing, made of black, satin-matt aluminum
- 24 carat real gold-plated
- For an optimal contact pressure
OFC Copper
OFC means oxygen-free copper and is an electrolytically refined copper used for its high conductivity with a maximum level of oxygen of 0.001%.
Silvered
Silvered OFC strands guarantee a brilliant and precise rendition of high frequencies.
VIABLUE™ Cables are produced and assembled manually in Germany. That way, we guarantee a high quality and first-class listening experience.
TECHNICAL DETAILS
- 2 conductors each: 1x high-pass and 1x low-pass
- Total cross sectional area: 8 mm² each
- 224 OFC strands per conductor
- Outer Ø incl. heat shrink: 8 mm
- 24 carat real gold-plated T8 Banana Plugs and T8 Spades
- Inductivity: 0.63 µH/m
- Burn-in time: approx. 30 hours
- Available sizes: 15 cm / 10 cm
