System Building
With the 15 Series, we offer a carefully considered array of models in order to allow for the best selection to fit any of your system needs. For example, the ultimate 15 Series system might be the DD15 CD transport, SC15 Prisma preamplifier and network player, I15 analog integrated amplifier, and R15 MM/MC phono preamplifier, allowing for the best performance, analog or digital, with the greatest number of connection options. However, there may be no need for additional digital inputs, MC phono preamplification may not be requirement, or simply to address budget or size considerations, a system composed of CD15 Prisma CD and network player with an I15 MM integrated amplifier with MM15 MM phono module installed could be assembled. This compact and reasonably priced system provides multiple analog source playback, including vinyl disc, as well as digital disc, stored or streamed media playback, with remarkable power, control, and connection flexibility.

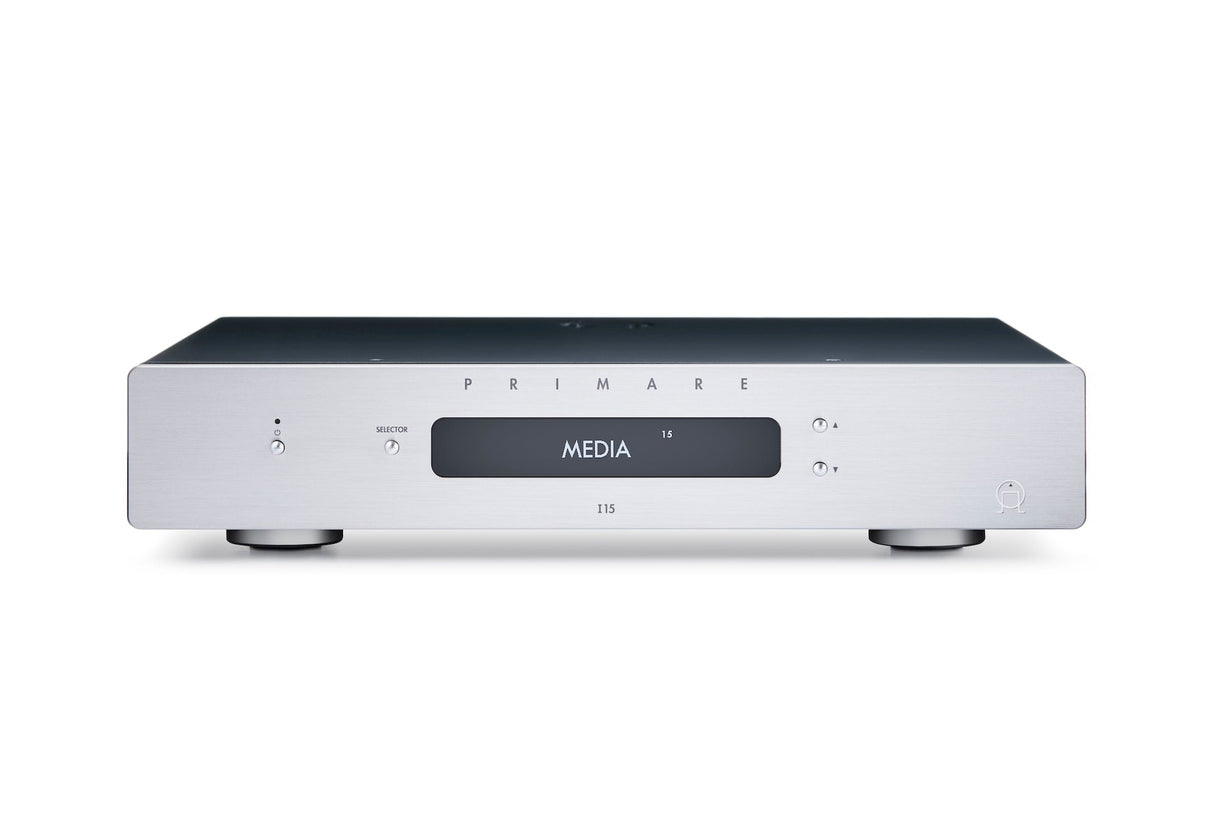

Specifications
-
Output power 2 x 60W/100W 8/4 ohms
-
RCA 5 x stereo analog pair inputs
-
MM phono stage board
-
RCA 1 x stereo analog pair line output
-
RCA 1 x stereo analog pair PRE output
-
C25 remote IR system control
-
IR 3.5 mm in/out
-
RS232 outboard system control port
-
12V trigger out
-
Dimensions 350 x 73 x 339 mm (WHD)
-
Weight 6.5 Kg
-
Finish black or titanium
For more detailed specifications see the design brief and user guide.
